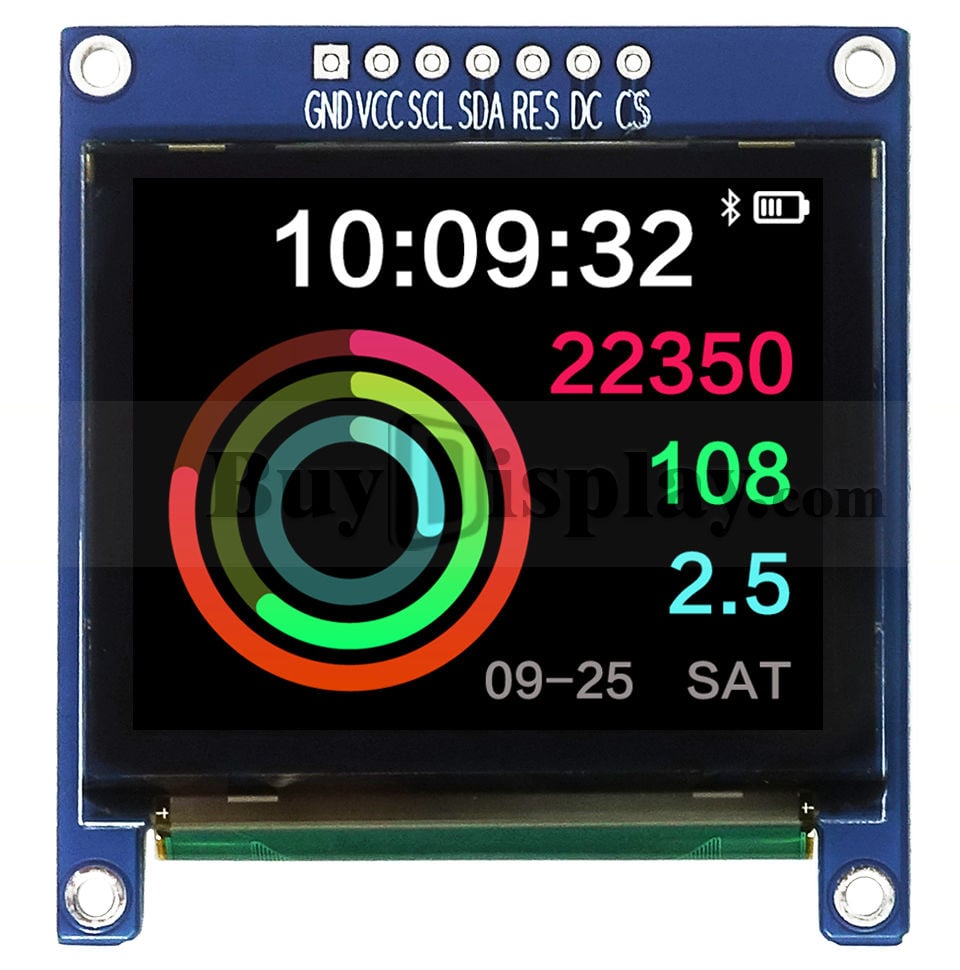

Color 1.69 inch OLED Display Module 160x128 Arduino,Raspberry Pi
کد محصول : 57
خدمات پس از فروش
ارسال سریع و رایگان

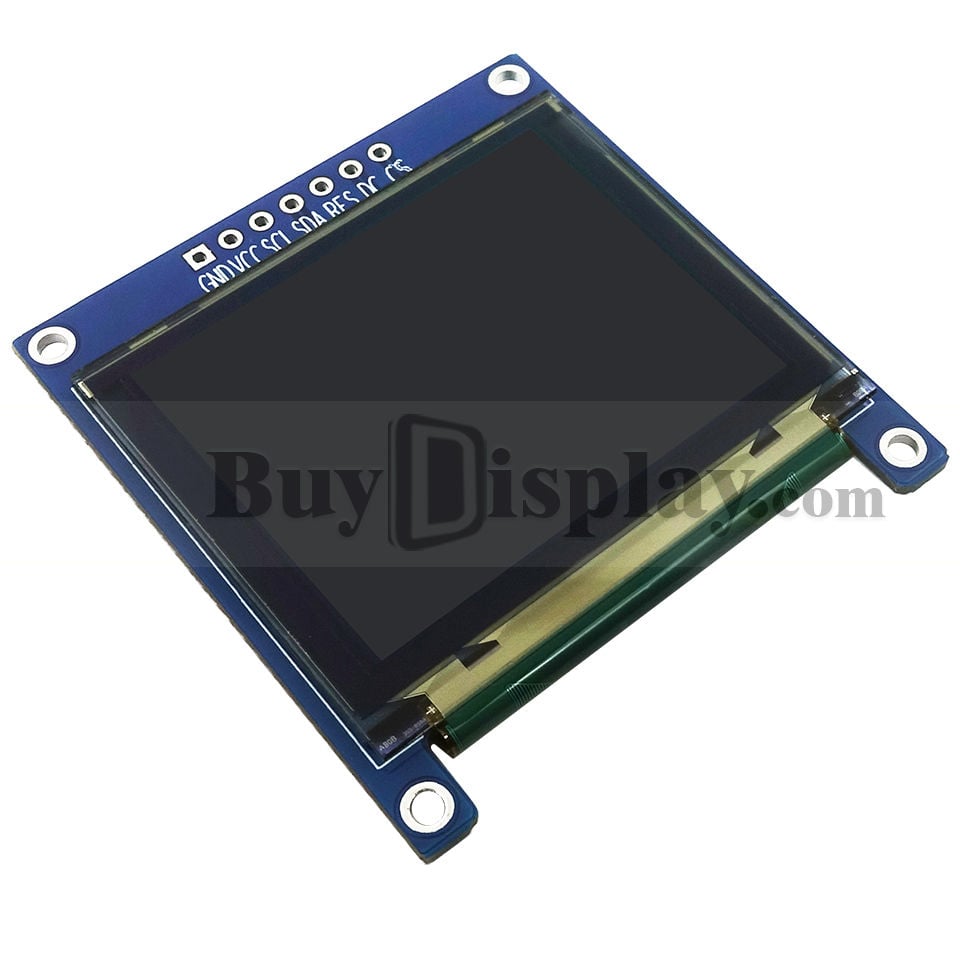

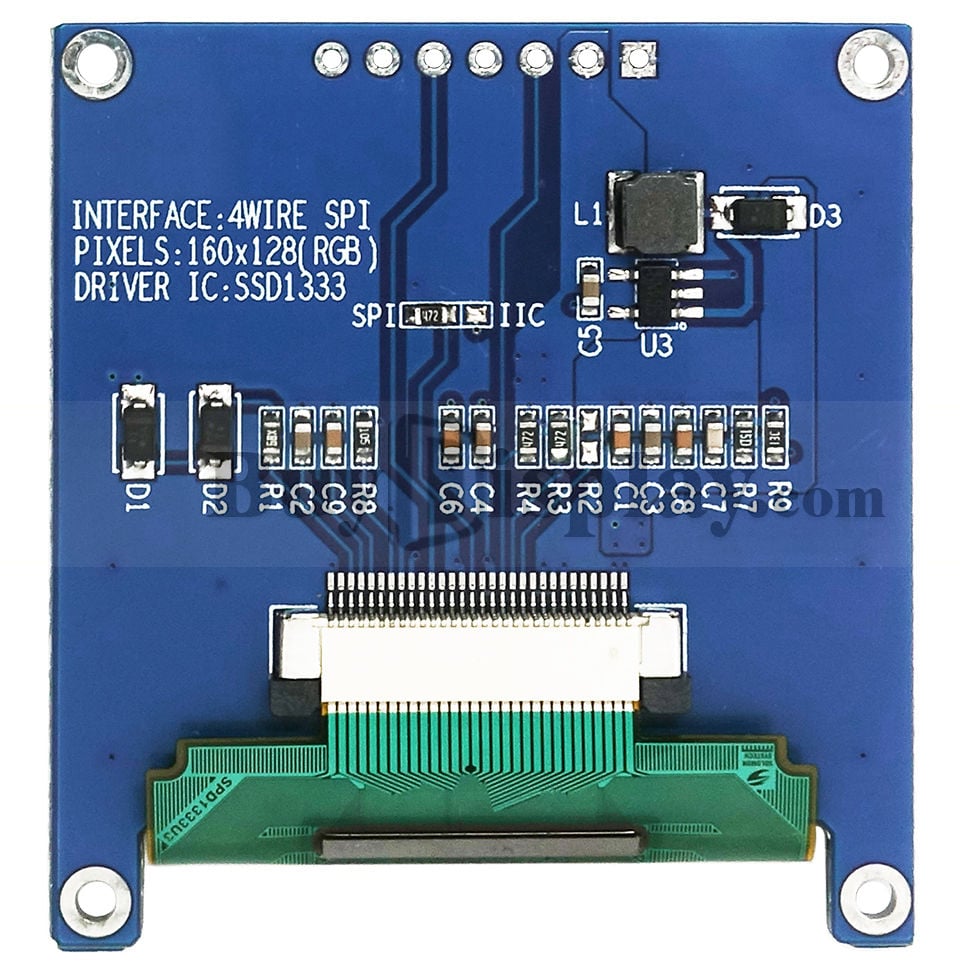

ER-OLEDM1.69-2C-SPI is the graphic OLED display panel attached with breakout board,made of 160x128 individual full color OLED pixels,diagonal is only 1.69 inch.The controller ic SSD1333, communicates via 4-wire SPI serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's 4-Wire Serial SPI interface with no pin header connection by default.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Of course, we wouldn't just leave you with a datasheet and a "good luck!" We prepared the interfacing documents,libraries and examples for arduino due,mega 2560,uno,nano and for raspberry pi or raspberry pi zero.For 8051 microcontroller user,we also prepared the interfacing document and demo code.
| Gross Weight (kg) | 0.0250 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2025. |
| Part Number | ER-OLEDM1.69-2C-SPI |
| Display Format | 160x128 Dots |
| Interface | 4-wire SPI |
| IC or Equivalent | SSD1333 |
| Appearance | RGB on Black |
| Diagonal Size | 1.69“ |
| Connection | Pin Header |
| Outline Dimension | 43.00(W)x46.00(H)mm |
| Visual Area | 35.57x28.86mm |
| Active Area | 33.58(W)x26.86(H)mm |
| Dot (Pixel) Size | 0.185x0.194mm |
| Dot (Pixel) Pitch | 0.201x0.201mm |
| IC Package | COG |
| Display Type | OLED |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Angle Range | Free |
| Brightness(Typ) | 200cd/m2 |
| Backlight Current (Typ) | N/A |
| Power Supply(Typ) | 3.3V |
| Supply Current for LCM(Max) | 2mA |
| Operating Temperature | -40℃~70℃ |
| Storage Temperature | -40℃~85℃ |
