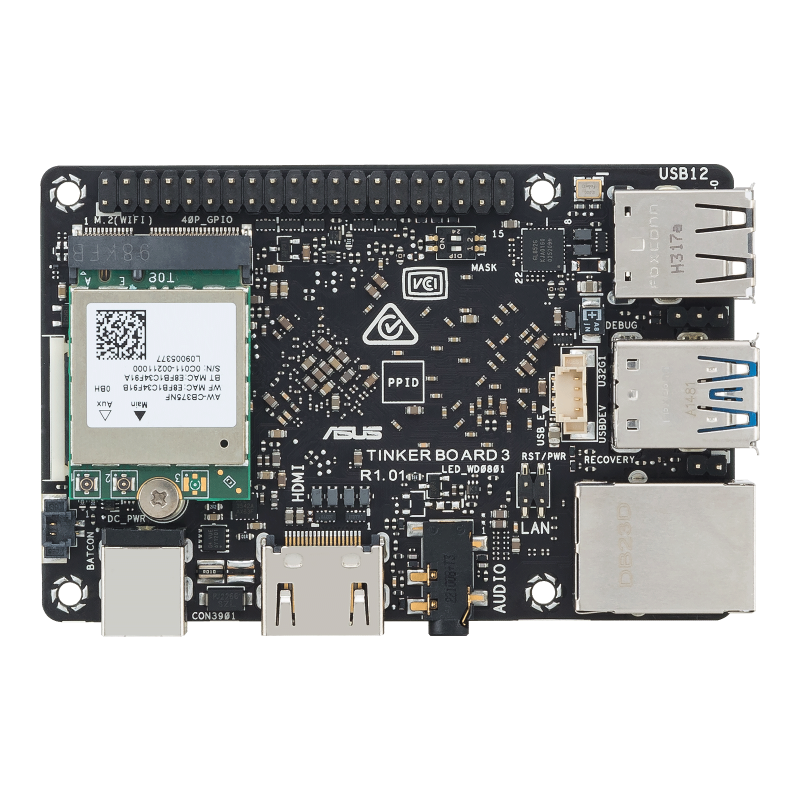

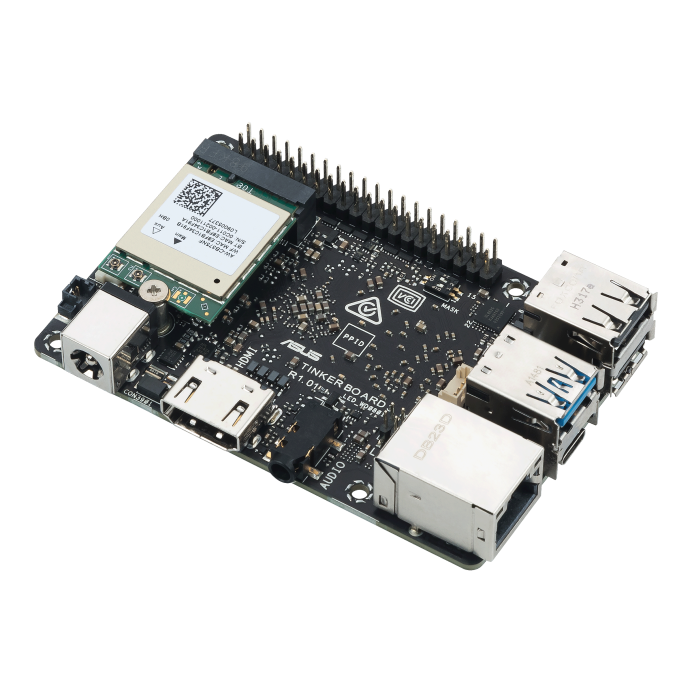

Arm System, Rockchip RK3566, LPDDR4X, USB3, USB2, MIPI-DSI, HDMI, M.2 E, 12-19V
- 64-bit, quad-core Arm Cortex-A55 processor, built on the Arm v8 architecture
- Multi-display with HDMI and MIPI DSI, 4K full HD support
- 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) 12-19V DC power input
- Ready-to-deploy panel solution with extensive technical support
- Developer-friendly SDK for integration
| Soc | Rockchip RK3566 |
|---|---|
| CPU | Quad-core Arm® Cortex®-A55 |
| GPU | Arm Mali™-G52 |
| NPU | RockchipNPU |
| Display | 1 x HDMI, supports up to 4096 x 2160 @ 60 Hz 1 x MIPI DSI, Supports four lanes up to 6 Gbps, 1920 x1080 @ 60 Hz (22 pin) |
| Memory Size | Dual-channelLPDDR4X 2GB / 4GB |
| Storage | Micro SD (TF) card slot (push/pull) |
| M.2 E key 2230 | 1 x for WiFi 5/6 & BT module (PCIe 2.0 x1, USB 2.0) |
| Audio | 1 x 3.5 phone jack (with mic) 1 x HDMI audio |

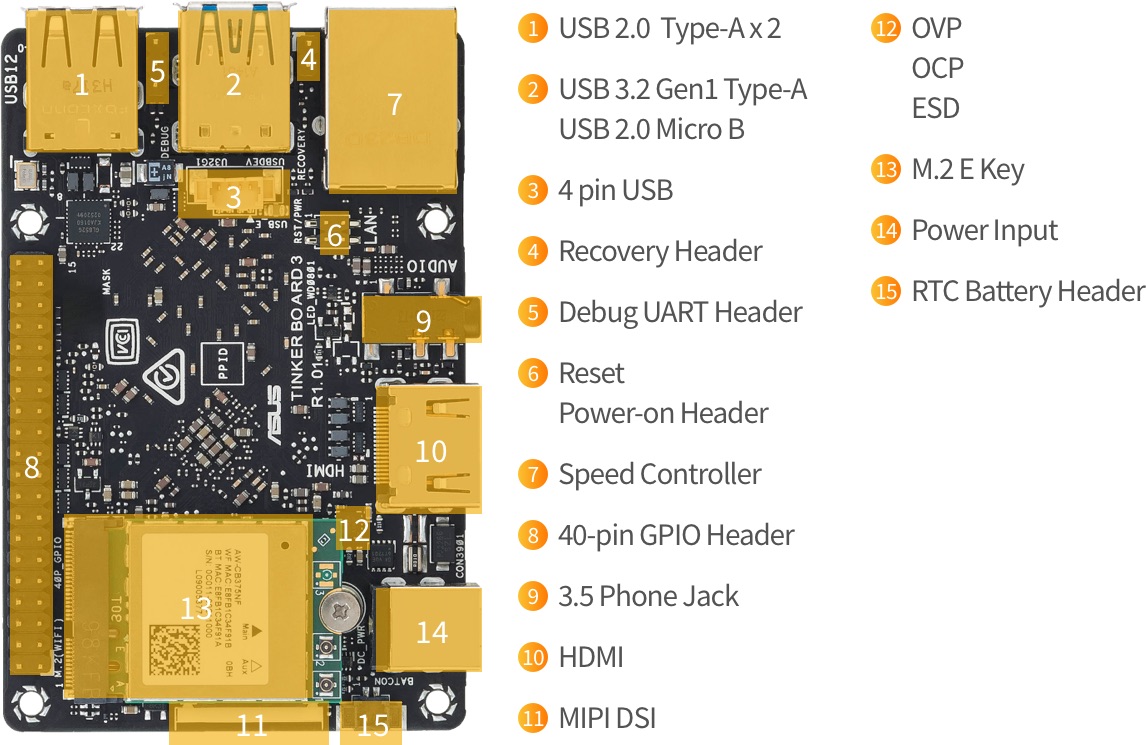

| USB | 1 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Type-A ports 2 x USB 2.0 Micro B, device only 1 x USB 2.0 4-pin header |
| Internal Headers | 1 x 40-pin GPIO headers includes: - up to 2 x SPI bus - up to 2 x I2C bus - up to 2 x UART - up to 3 x PWM - up to 1 x PCM/I2S(master/slave) - up to 1 x S/PDIF TX - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x 2-pin recovery header 1 x 2-pin power-on & reset header 1 x 3-pin debug UART header 1 x 2-pin DC fan header 1 x 2-pin RTC battery header 1 x MaskromDIP switch |
| Power Connector 12-19V | 1 x DC barrel power input jack (5.5/2.5 mm) |
| OS Support | Debian / Android / Yocto |
| Dimension | 3.37 inch x 2.125 inch (85 × 56 mm) |
| Operation temperature | 0℃ ~ 60℃ |
| Non-operation temperature | -40℃ ~ 85℃ |
| Non-operation humidity | 10% ~ 85% (non-condensing) |
| Note | *Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) |
