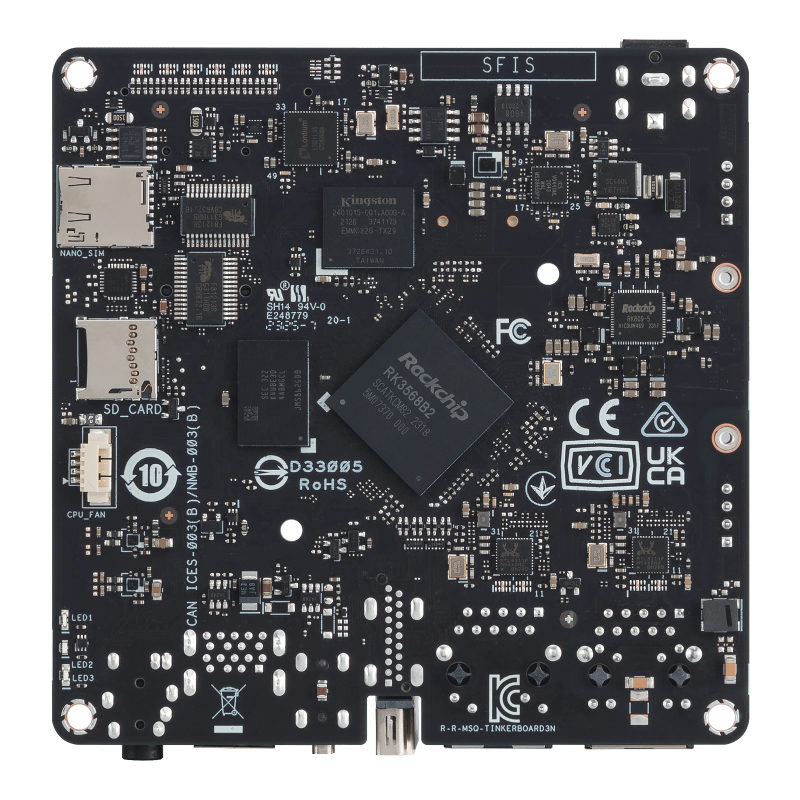

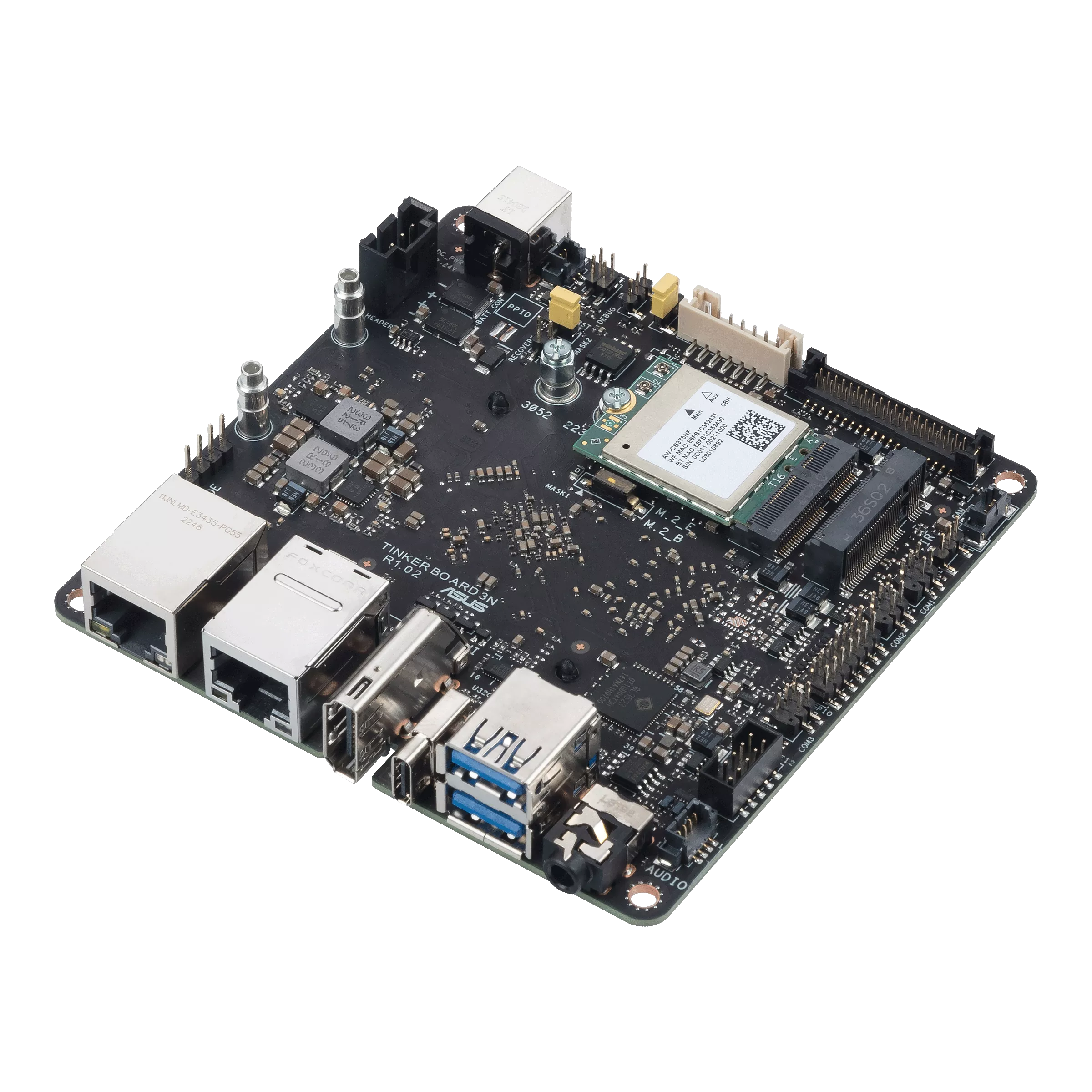

Tinker Board 3N PLUS
کد محصول : 52
خدمات پس از فروش
ارسال سریع و رایگان
Ultimate computing performance with NUC-size design
With its versatile and modern 64-bit, quad-core ARM-based processor — the Rockchip RK3568 — ASUS IoT Tinker Board 3N PLUS offers superior performance in NUC size. Powered by an ARM-based Mali™-G52 GPU, Tinker Board 3N PLUS offers smoother graphics processing and better data security, allowing for a wide range of applications in smart manufacturing and smart retail such as IoT gateways, human-machine interfacing (HMI), digital signage, self-service kiosk and more.
One of the key advantages of the Tinker Board 3N PLUS is its advanced memory configuration to better fulfill diversified market requirement. Featuring LPDDR4X memory, the board offers better data-transfer rates and operates with just 55% of the energy required by LPDDR4, while also boasting 5X-lower power consumption in standby mode compared to DDR4.
z
| SoC | Rockchip RK3568 |
|---|---|
| CPU | Quad-core Arm® Cortex®-A55 |
| GPU | Arm® Mali™-G52 |
| Display | 1 x HDMI™ with CEC hardware ready 1 x LVDS (Dual-link) 1 x eDP |
| Memory Size | Dual-CH LPDDR4/LPDDR4X 2GB / 4GB |
| Storage | none / 32GB / 64GB eMMC Micro SD(TF) card slot (push/pull) SPI Flash 16MB |
| M.2 E key 2230 |
1 x for Wi-Fi 5/6 & BT module (PCIe 2.0 x1, USB 2.0) |
| M.2 B key 3042/3052 with nano-SIM slot |
1 x for 4G/5G or SSD module (PCIe 3.0 x1, USB 3.0, USB 2.0, SIM) |
| SIM Slot | x1 |
| Audio | 1 x 3.5 Phone Jack (w/ Mic) 1 x Speaker Stereo Pin Header (4ohm, 3W each) 1 x HDMI audio |
| USB | 1 x USB 3.2 Gen1 Type-C® OTG port 2 x USB 3.2 Gen1 Type-A ports 2 x USB 2.0 Pin header |

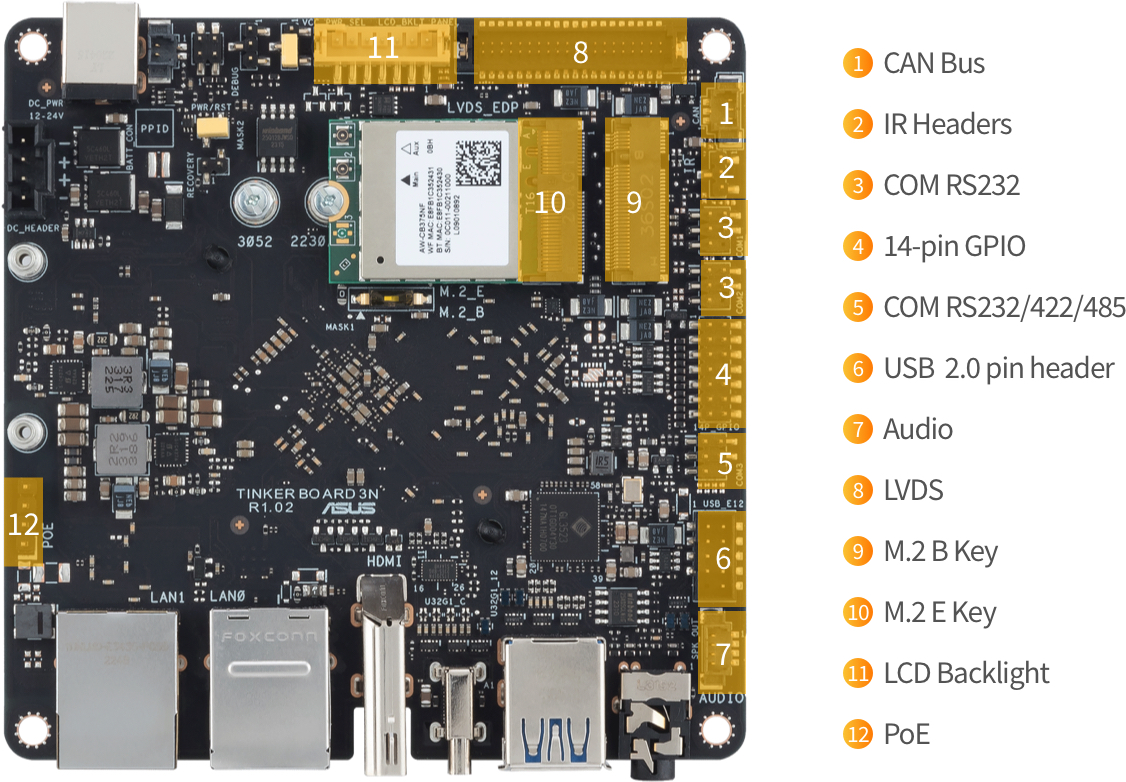

| CAN Bus 2.0B FD | x1 Pin Header |
| COM 232 (with flow control) | x2 Pin Header |
| COM 232/422/485 | x1 Pin Header |
| Internal Headers | 1 x 40-pin LVDS + eDP connector 1 x 5V Panel Backlight & Control header 1 x IR Receiver header 1 x 14-pin GPIO headers includes: - 1 x GND - 1 x I2C bus - 1 up to 2 x UART - up to 1 x SPI bus (2 select) - up to 1 x SPDIF - up to 4 x PWM - 2 x ADC (8 bit) 1 x 2-pin Recovery header 1 x 4-pin Power-on & Reset header 1 x 3-pin Debug UART header 1 x 4-pin DC Fan header 1 x 2-pin RTC Battery header |
| Power Connector 12~24V |
1 x DC Barrel Power Input Jack (5.5/2.5 mm) 1 x 4-Pin Power In Header (also for POE module) |
| OS Support | Debian 11 / Android 12 |
| Dimension | 4 x 4 inches / 100 x 100 mm |
| Operation temperature | -40℃ ~ 85℃ |
| Non operation temperature | -40℃ ~ 85℃ |
| Non operation humidity | 10% ~ 85% (Non condensing) |
| Note | *Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) |
